store - Wednesday 28.08.2024 Delivery to address - Friday 30.08.2024 |
Delivery dates and availability
In stock more than 1000 m
|
Wednesday 28.08.2024 | more than 1000 m |
Friday 30.08.2024 | more than 1000 m |
Shipping within 1 day | more than 50 ks m |
Reaction to fire class | Eca |

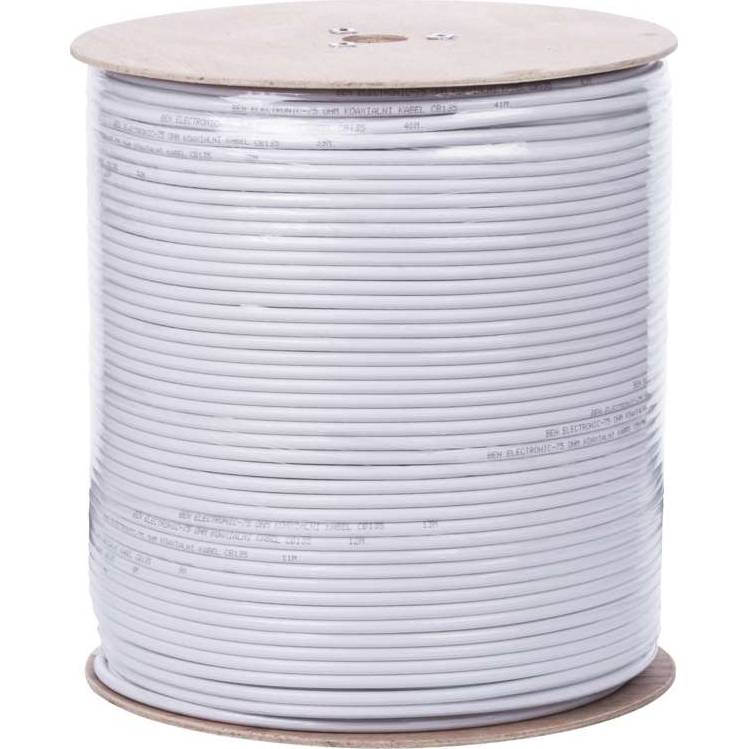

sales packaging | 500 m, wooden spool |
warranty period | 5 years |
APE = air dielectric | No |
FPE = foam dielectric | Yes |
storage temperature | -20 °C až +75 °C |
shortening factor | 0.82 |
shielding I.foil | 1× Al/PET |
suitable for outdoor use | No |
insulation resistance between cores at 20 °C (MOhm/km) | 1000 |
max. attenuation at 20 °C (dB/100m) 450 MHz | 12.5 |
max. attenuation at 20 °C (dB/100m) 1 000 MHz | 19.3 |
number of shield wires | 128×0.12 mm |
PE = polyethylene dielectric | FPE |
weight (kg/km) | 41.5 |
min. shielding attenuation (dB) 10 ~ 800 MHz | 75 |
diameter of the inner conductor | 1.1 mm |
max. equal resistance at 20 °C, (Ohm/km) - outer core | 38.5 |
max. equal resistance at 20 °C (Ohm/km) - inner core | 18.5 |
impedance | 75 Ohm |
max. attenuation at 20 °C (dB/100m) 2 000 MHz | 29.5 |
mounting temperature | +5 °C až +60 °C |
max. attenuation at 20 °C (dB/100m) 860 MHz | 18.5 |
type of coaxial cable | CB21D |
material of the inner conductor | Copper (Cu) |
recommended connector types - F crimp | *K7220 |
shielding II. foil | not |
cable sheath diameter | 6.8 mm |
min. reflection attenuation at 20 °C (dB) 10-300 MHz | 30 |
recommended connector types - F screw connector | *K7351 |
packing method - coil type | wooden coil |
shielding material | Aluminium (Al) |
max. attenuation at 20 °C (dB/100m) 650 MHz | 15.3 |
min. reflection attenuation at 20 °C (dB) 600-900 MHz | 23 |
cable sheath material | PVC |
UV resistant | No |
capacitance (pF/m) | 52 |
max. attenuation at 20 °C (dB/100m) 10 MHz | 2.2 |
dielectric type, diameter | FPE 4.8 mm |
number of shielding | 2 |
shielding diameter | 128×0.12 mm² |
max. attenuation at 20 °C (dB/100m) 100 MHz | 5.8 |
packing method - length | 500 m |
method of packaging - marking by yardage | 1-500 m |
shielding coverage | >98 % |
cable sheath colour | White |
PES = film layer | No |
min. bending radius single/multiple | 35/70 mm |
min. reflection attenuation at 20 °C (dB) 300-600 MHz | 25 |
hazardous substances | none |
intended use | internal wiring, interference resistant, CLASS A |
insulation of power supply wires | not specified |
design of power supply wires | not specified |
cross-section of power supply wires | not specified |
insulation colour of power supply wires | not specified |
